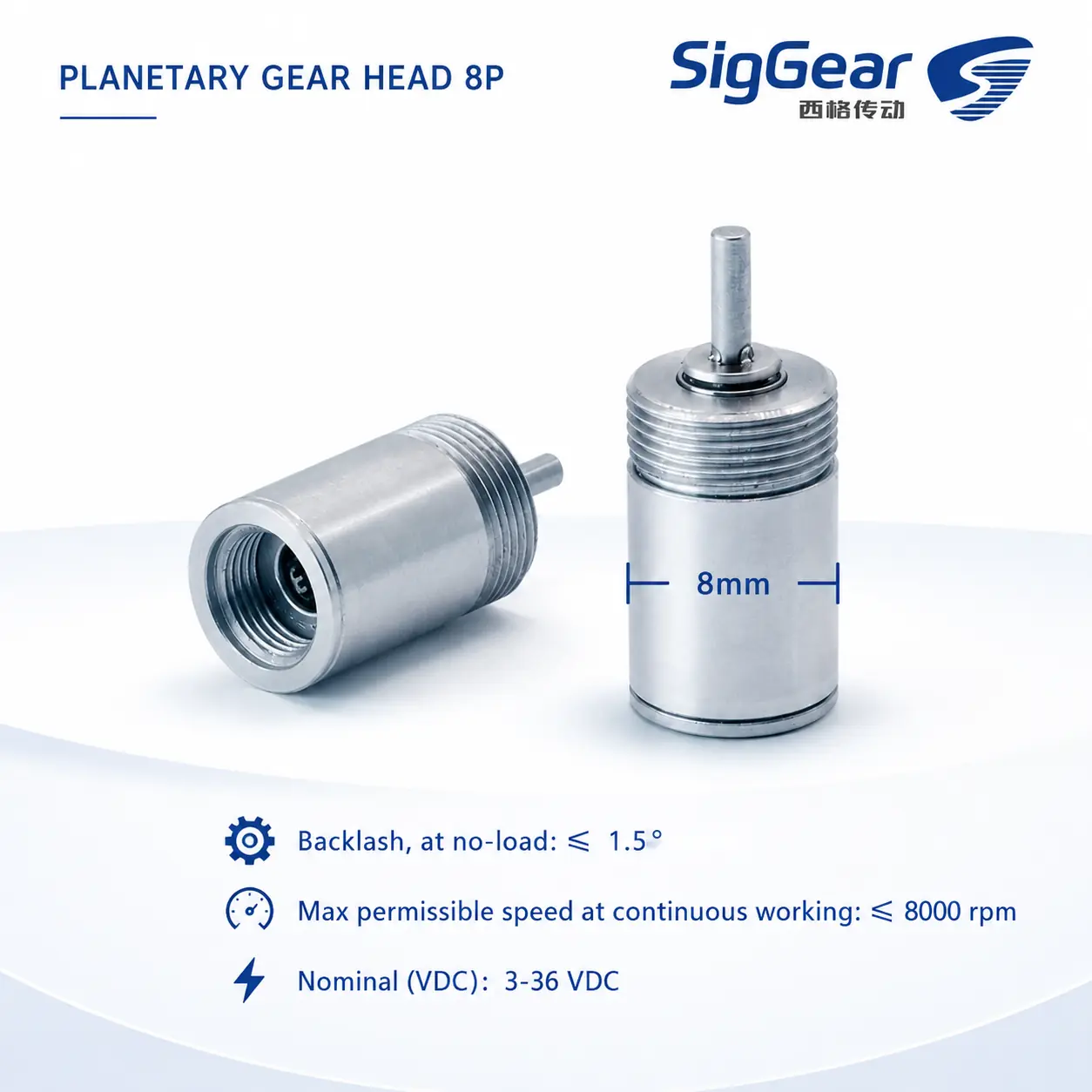

8 mm Micro Precision Planetary Gearhead (8P)¶
Download Datasheet PDF Download 2D Drawing PDF Download Full Assembly STEP Download Simplified 4-Stage STEP · Reference
Engineering data reference: Use the current 8P Datasheet PDF for published input-speed conditions, ratio/stage, rated load and dimensions. Images here show real products only; if a web summary and the downloadable Datasheet differ, verify the latest controlled revision with SigGear engineering.
| Ø Diameter | Reduction ratios | Gearhead body length | Rated allowable torque | Backlash |
|---|---|---|---|---|
| 8 mm | 3.8:1–731.16:1 | 10.15–18.10 mm | 19.6–39.2 mN·m | ≤ 1.5° |
Custom 8P interface or motor fit? Match my motor · Review my drawing / STEP · Replace / redesign existing gearbox · Prototype → volume
More: Stage-by-stage ratios · Online technical specifications · Official 2D Drawing PDF · Motor-only datasheets · All 12 models

Product Identity¶
| Item | Description |
|---|---|
| Model | 8P |
| Product type | Micro precision planetary gearhead (planetary gearbox) |
| Nominal outer diameter | 8 mm |
| Number of stages | 1 to 4 |
| Housing material | Steel |
| Gearwheel material | Steel |
| Output bearing | Ball Bearing |
Key Specifications¶
| Parameter | Published value |
|---|---|
| Nominal outer diameter | 8 mm |
| Gearhead length range | 10.15–18.10 mm |
| Reduction ratio range | 3.8:1–731.16:1 |
| Rated allowable torque range | 19.6–39.2 mN·m |
| Maximum momentary torque range | 39.2–78.5 mN·m |
| Efficiency range | 66–90% |
| Backlash at no load | ≤ 1.5° |
| Permissible gearhead input speed, continuous operation | Motor/configuration dependent; confirm selected operating point |
| Operating temperature | −40 to 120 °C |
Maximum momentary torque is not a continuous working rating.

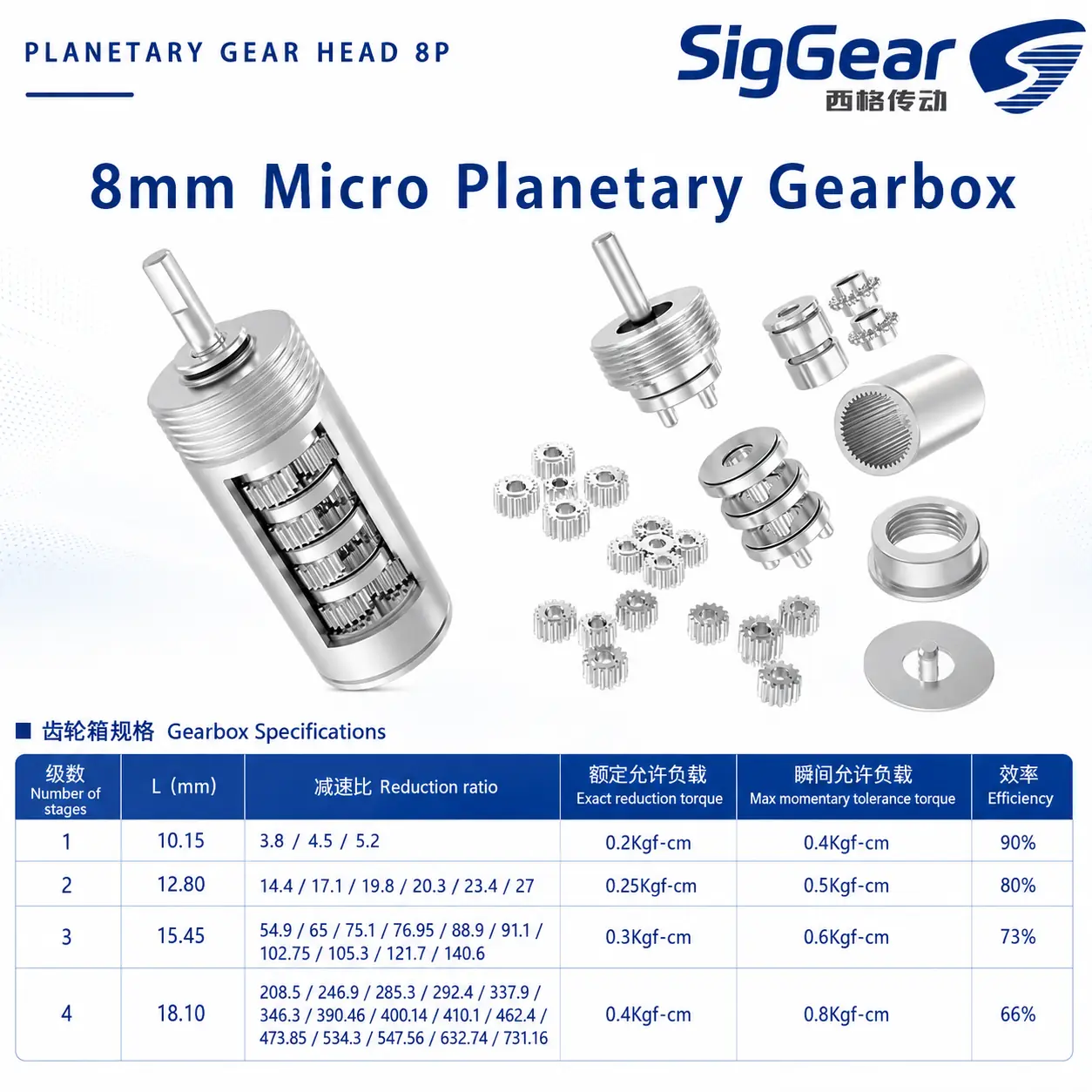

Stage, Ratio and Performance Table¶
| Stages | Gearhead length L | Available reduction ratios | Rated allowable torque | Maximum momentary torque | Efficiency |
|---|---|---|---|---|---|
| 1 | 10.15 mm | 3.8 / 4.5 / 5.2 | 19.6 mN·m | 39.2 mN·m | 90% |
| 2 | 12.80 mm | 14.4 / 17.1 / 19.8 / 20.3 / 23.4 / 27 | 24.5 mN·m | 49.0 mN·m | 80% |
| 3 | 15.45 mm | 54.9 / 65 / 75.1 / 76.95 / 88.9 / 91.1 / 102.75 / 105.3 / 121.7 / 140.6 | 29.4 mN·m | 58.8 mN·m | 73% |
| 4 | 18.10 mm | 208.5 / 246.9 / 285.3 / 292.4 / 337.9 / 346.3 / 390.46 / 400.14 / 410.1 / 462.4 / 473.85 / 534.3 / 547.56 / 632.74 / 731.16 | 39.2 mN·m | 78.5 mN·m | 66% |

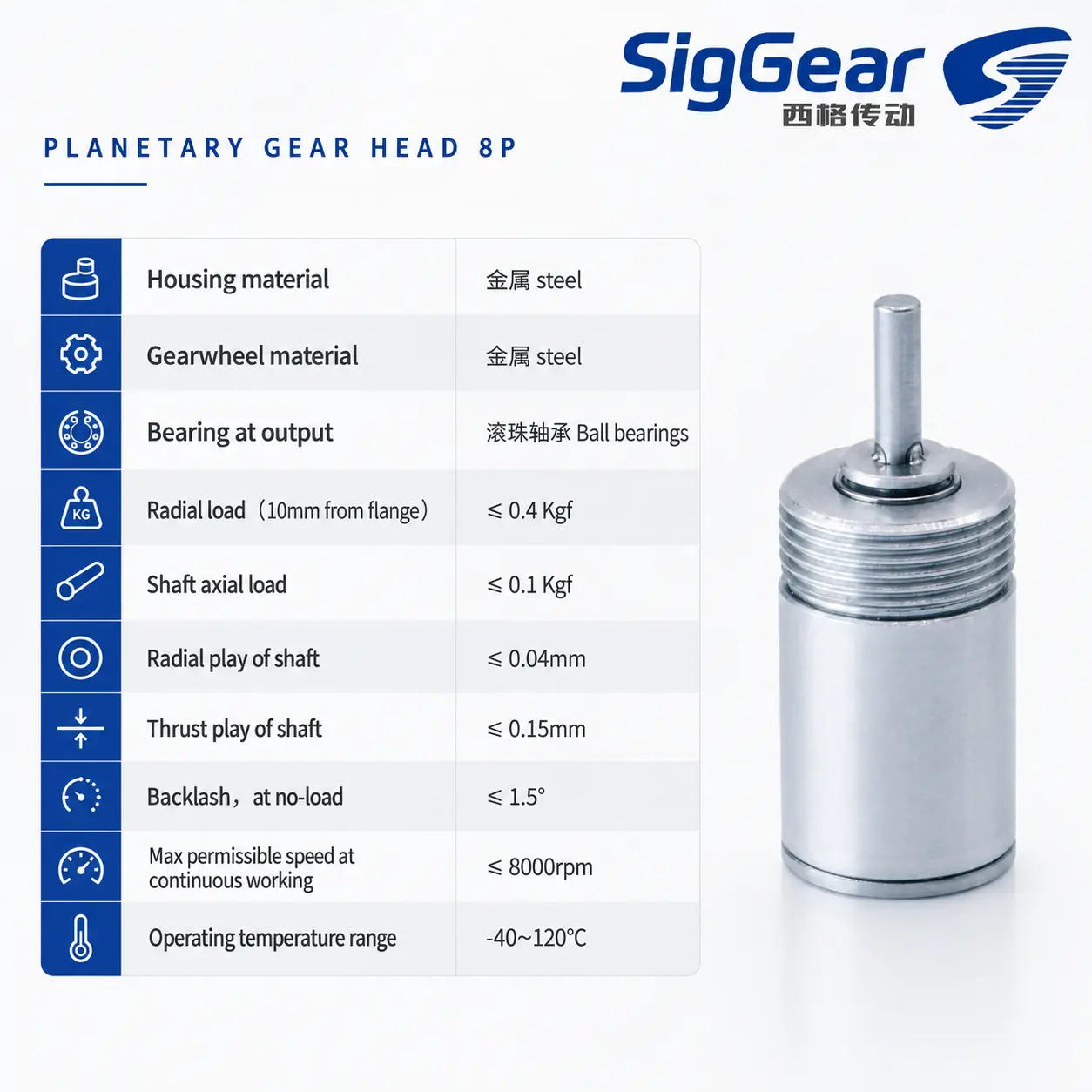

Shaft and Load Limits¶
| Parameter | Published value |
|---|---|
| Radial load, measured 10 mm from flange | ≤ 0.4 kgf |
| Shaft axial load | ≤ 0.1 kgf |
| Radial shaft play | ≤ 0.04 mm |
| Thrust shaft play | ≤ 0.15 mm |

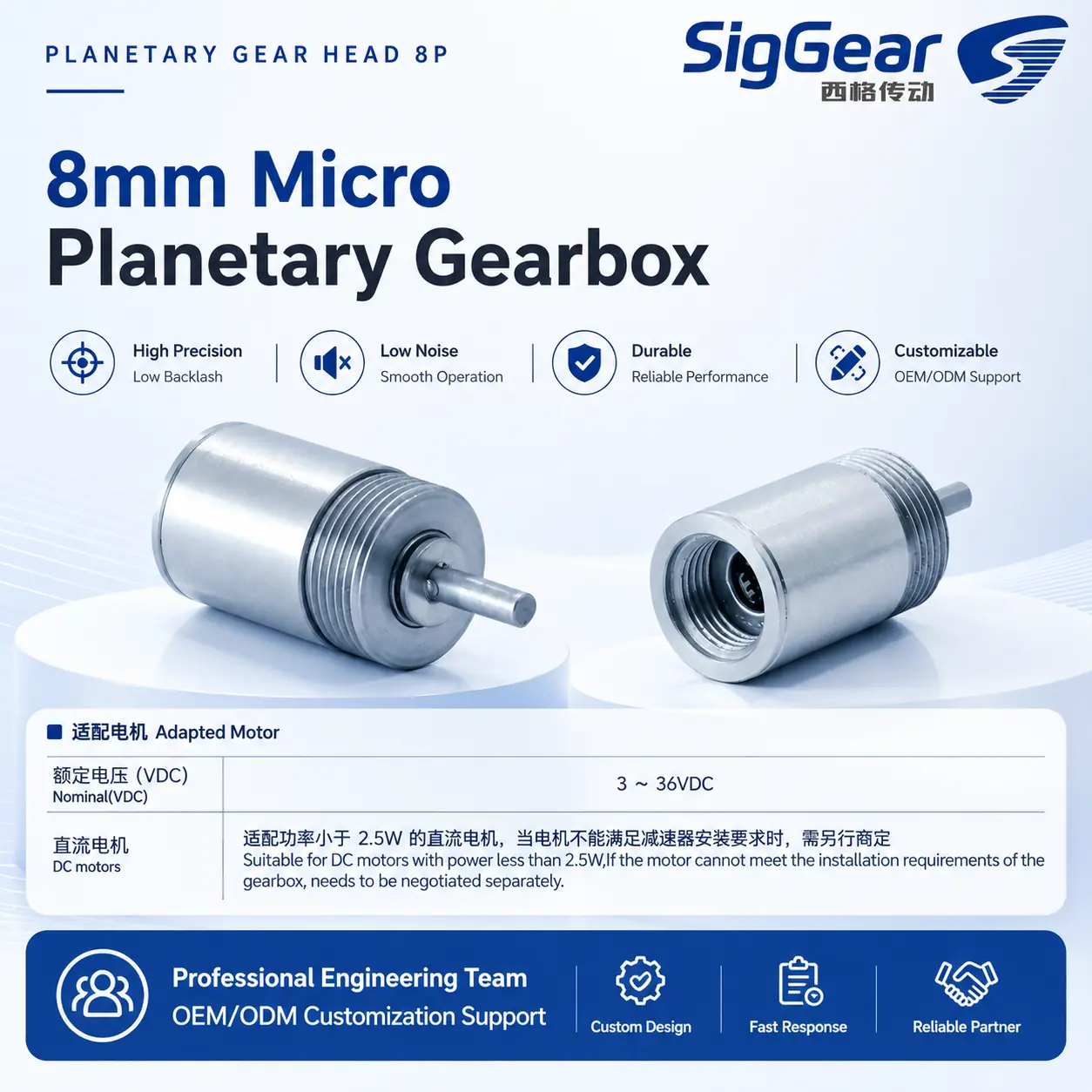

Motor Compatibility¶
For motor + gearhead matching, use the downloadable gearhead Datasheet and the motor Datasheet library. Motor voltage/power, shaft/pinion, pilot, mounting, input speed and duty-cycle compatibility must be confirmed for the exact combination; older marketing charts are not a technical specification.
Dimensions and Interface¶

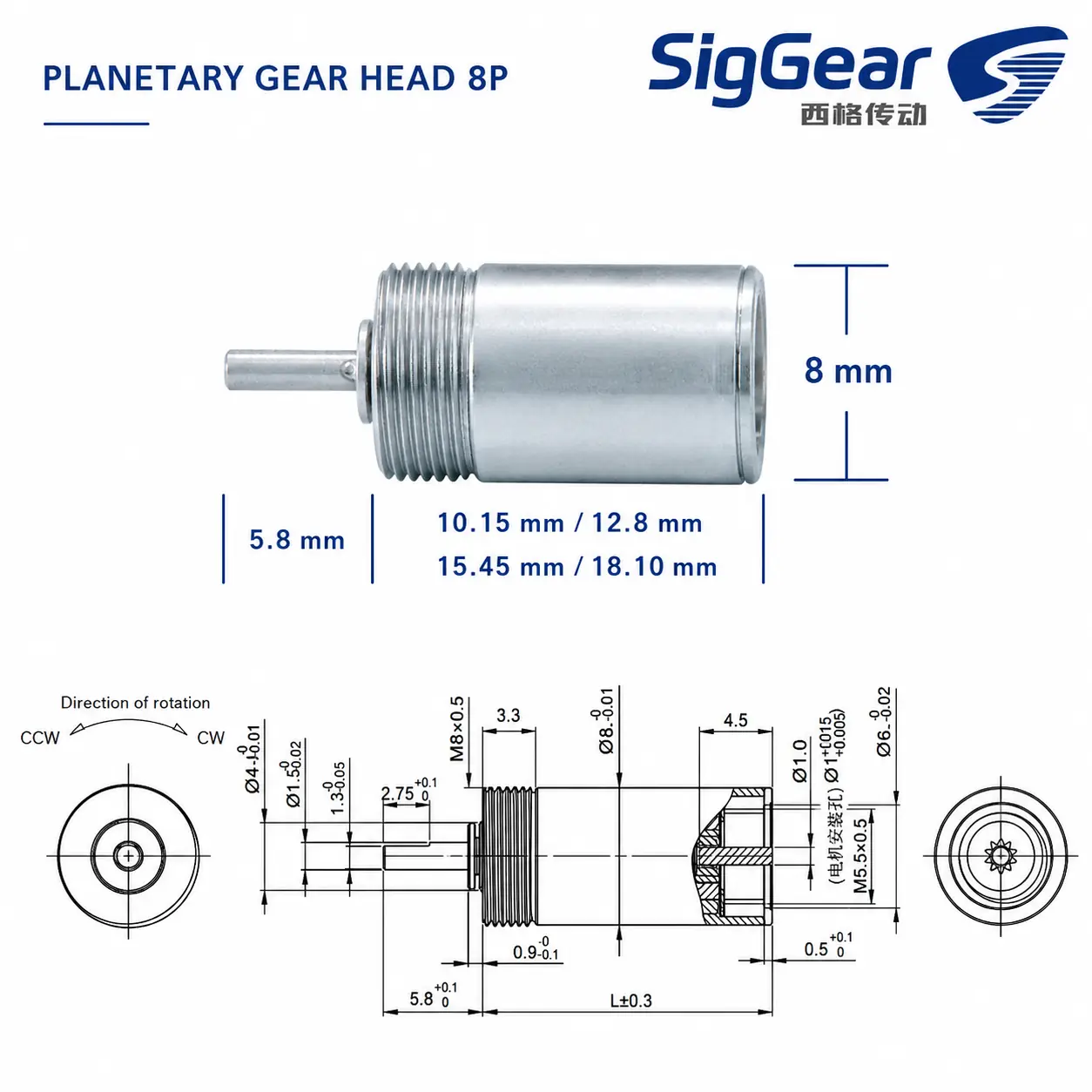

The published drawing shows an 8 mm body, an M8×0.5 external thread, a 5.8 mm output-shaft extension and stage-dependent gearhead lengths of 10.15, 12.80, 15.45 and 18.10 mm. Download the official 2D Drawing PDF above for the complete dimensional notation and tolerances.
STEP Notes¶
The Full Assembly STEP is the original Creo assembly export for 8P, now available for direct download. The separate Simplified STEP is a 4-stage reference model for preliminary packaging. For dimensional verification, use the downloadable 2D Drawing PDF and confirm its controlled production revision.
