14 mm Micro Precision Planetary Gearhead (14P)

Download Datasheet PDF Download 2D Drawing PDF Download Full Assembly STEP Download Simplified 4-Stage STEP · Reference

Engineering data reference: Use the current 14P Datasheet PDF for published input-speed conditions, ratio/stage, rated load and dimensions. Images here show real products only; if a web summary and the downloadable Datasheet differ, verify the latest controlled revision with SigGear engineering.

Ø Diameter Reduction ratios Gearhead body length Rated allowable torque Backlash
14 mm 3.75:1–443.3:1 15.2–26.6 mm 343.2–588.4 mN·m ≤ 1.5°

Custom 14P interface or motor fit? Match my motor · Review my drawing / STEP · Replace / redesign existing gearbox · Prototype → volume

More: Stage-by-stage ratios · Online technical specifications · Official 2D Drawing PDF · Motor-only datasheets · All 12 models

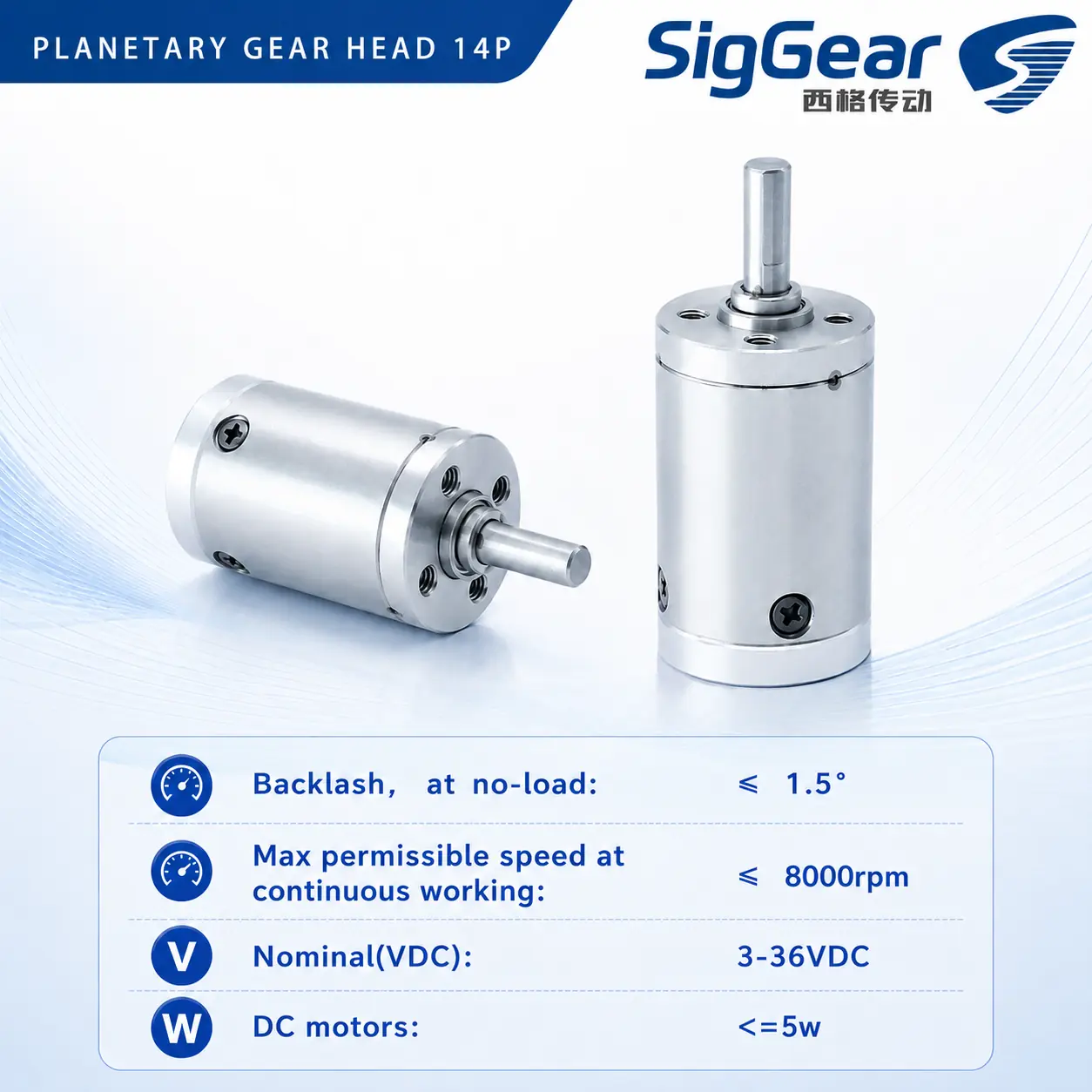

Authentic SigGear 14P 14 mm planetary gearhead, photographed with digital caliper

Product Identity

Item Description
Model 14P
Product type Micro precision planetary gearhead (planetary gearbox)
Nominal outer diameter 14 mm
Number of stages 1 to 4
Housing material Steel
Gearwheel material Steel
Output bearing Ball Bearing

Key Specifications

Parameter Published value
Nominal outer diameter 14 mm
Gearhead length range 15.2–26.6 mm
Reduction ratio range 3.75:1–443.3:1
Rated allowable torque range 343.2–588.4 mN·m
Maximum momentary torque range 686.5–1176.8 mN·m
Efficiency range 66–90%
Backlash at no load ≤ 1.5°
Permissible gearhead input speed, continuous operation Motor/configuration dependent; confirm selected operating point
Operating temperature −40 to 120 °C

Maximum momentary torque is not a continuous working rating.

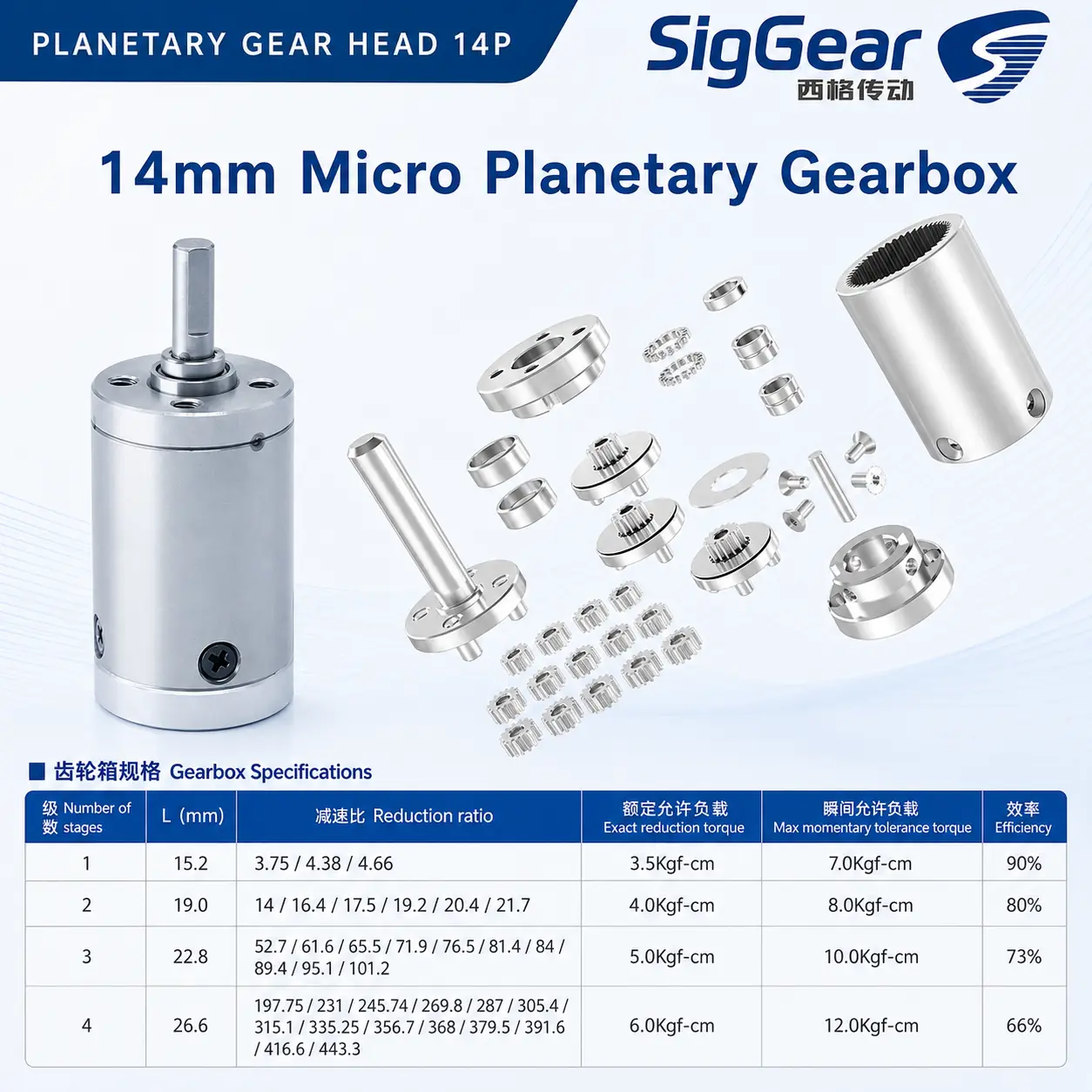

Stage, Ratio and Performance Table

Stages Gearhead length L Available reduction ratios Rated allowable torque Maximum momentary torque Efficiency
1 15.2 mm 3.75 / 4.38 / 4.66 343.2 mN·m 686.5 mN·m 90%
2 19.0 mm 14 / 16.4 / 17.5 / 19.2 / 20.4 / 21.7 392.3 mN·m 784.5 mN·m 80%
3 22.8 mm 52.7 / 61.6 / 65.5 / 71.9 / 76.5 / 81.4 / 84 / 89.4 / 95.1 / 101.2 490.3 mN·m 980.7 mN·m 73%
4 26.6 mm 197.75 / 231 / 245.74 / 269.8 / 287 / 305.4 / 315.1 / 335.25 / 356.7 / 368 / 379.5 / 391.6 / 416.6 / 443.3 588.4 mN·m 1176.8 mN·m 66%

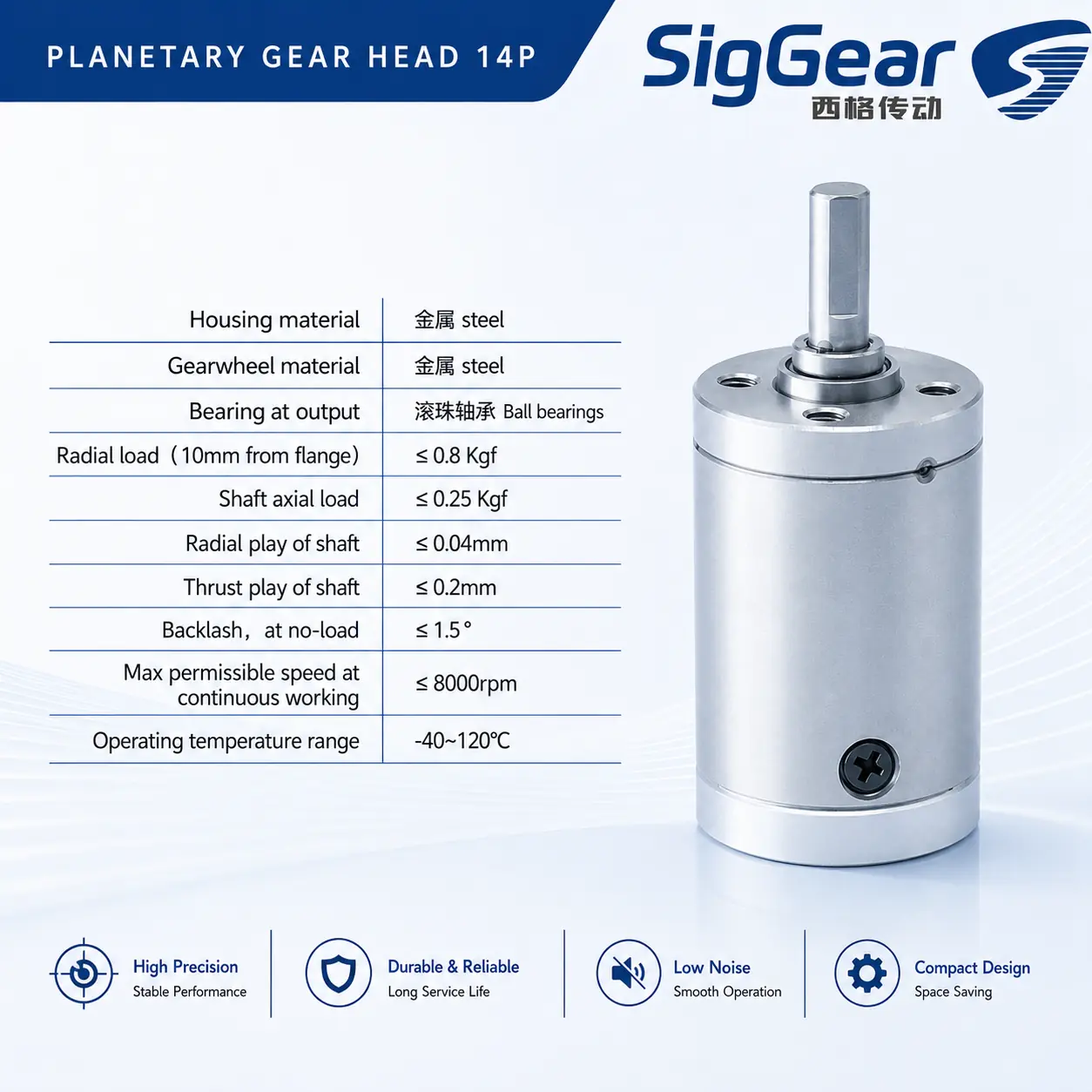

Shaft and Load Limits

Parameter Published value
Radial load, measured 10 mm from flange ≤ 0.8 kgf
Shaft axial load ≤ 0.25 kgf
Radial shaft play ≤ 0.04 mm
Thrust shaft play ≤ 0.2 mm

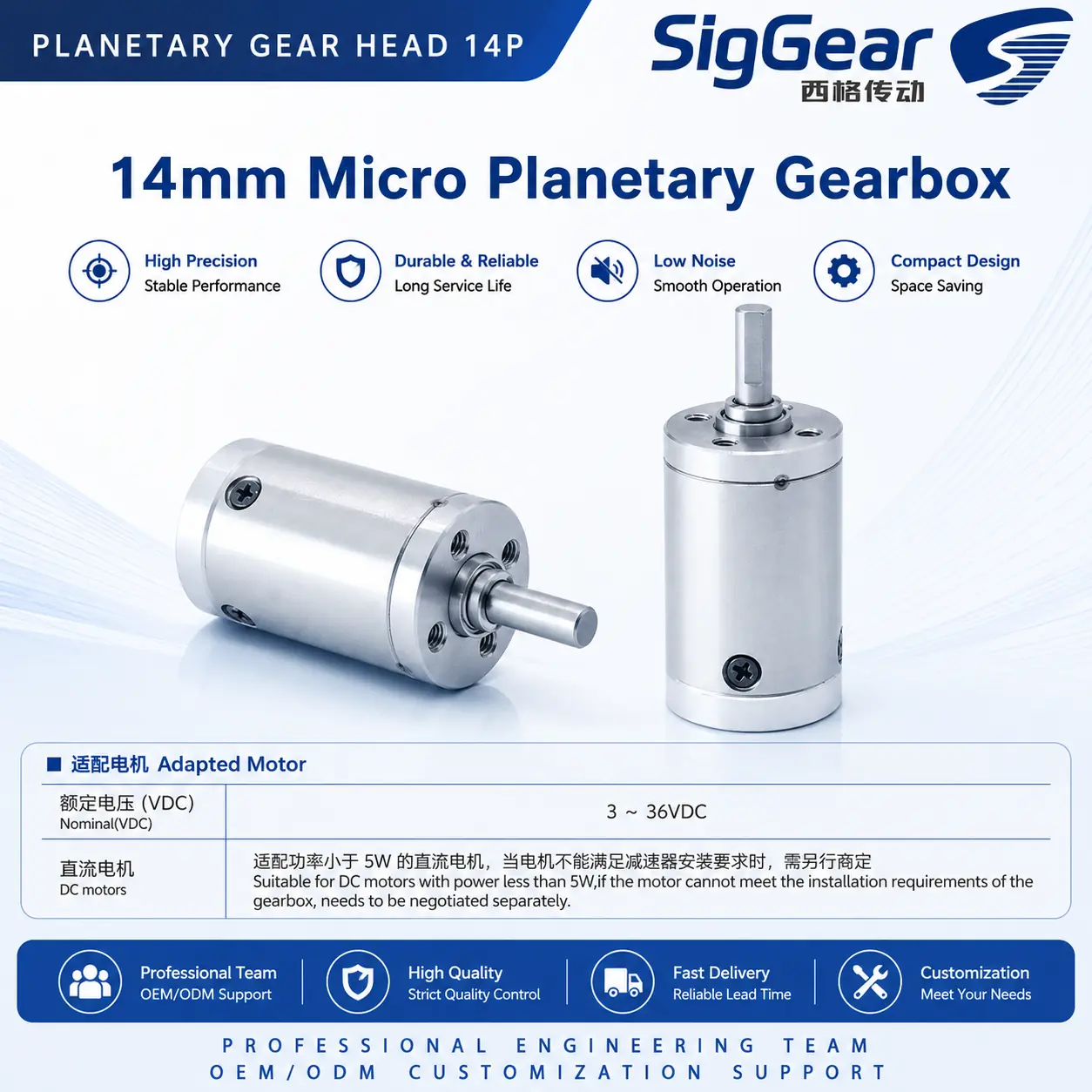

Motor Compatibility

For motor + gearhead matching, use the downloadable gearhead Datasheet and the motor Datasheet library. Motor voltage/power, shaft/pinion, pilot, mounting, input speed and duty-cycle compatibility must be confirmed for the exact combination; older marketing charts are not a technical specification.

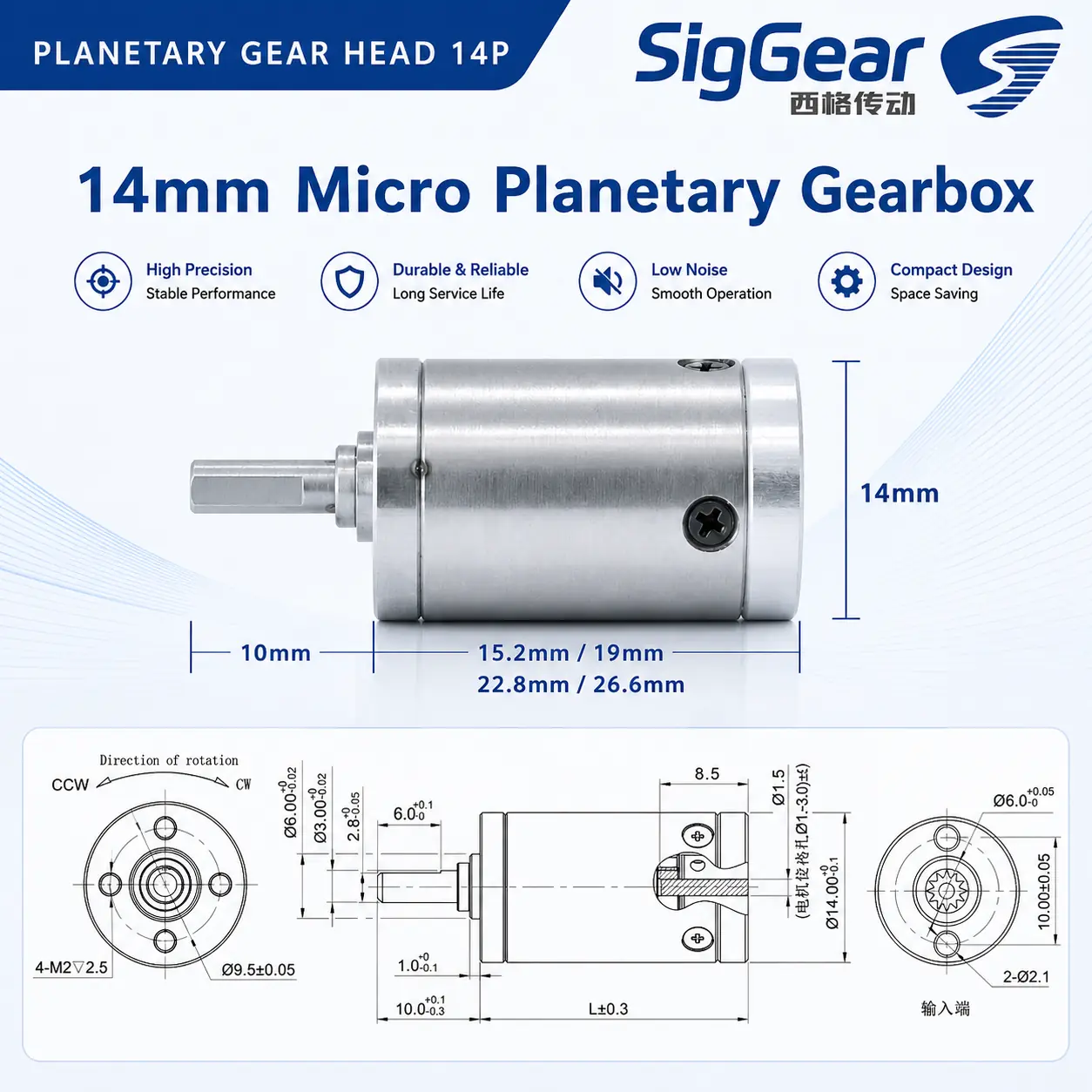

Dimensions and Interface

The published drawing shows a 14 mm body, a 10.0 mm output-shaft extension and stage-dependent gearhead lengths of 15.2, 19.0, 22.8 and 26.6 mm. Download the official 2D Drawing PDF above for the complete shaft, mounting, input-interface and tolerance notation.

STEP Notes

The Full Assembly STEP is the original Creo assembly export for 14P, now available for direct download. The separate Simplified STEP is a 4-stage reference model for preliminary packaging. For dimensional verification, use the downloadable 2D Drawing PDF and confirm its controlled production revision.

Back to the 8–42 mm product catalogue

Potential OEM applications (suitability requires engineering review): Dexterous-hand grippers · All applications.

Motor + Gearhead Assembly: Motor matching and custom integration.
