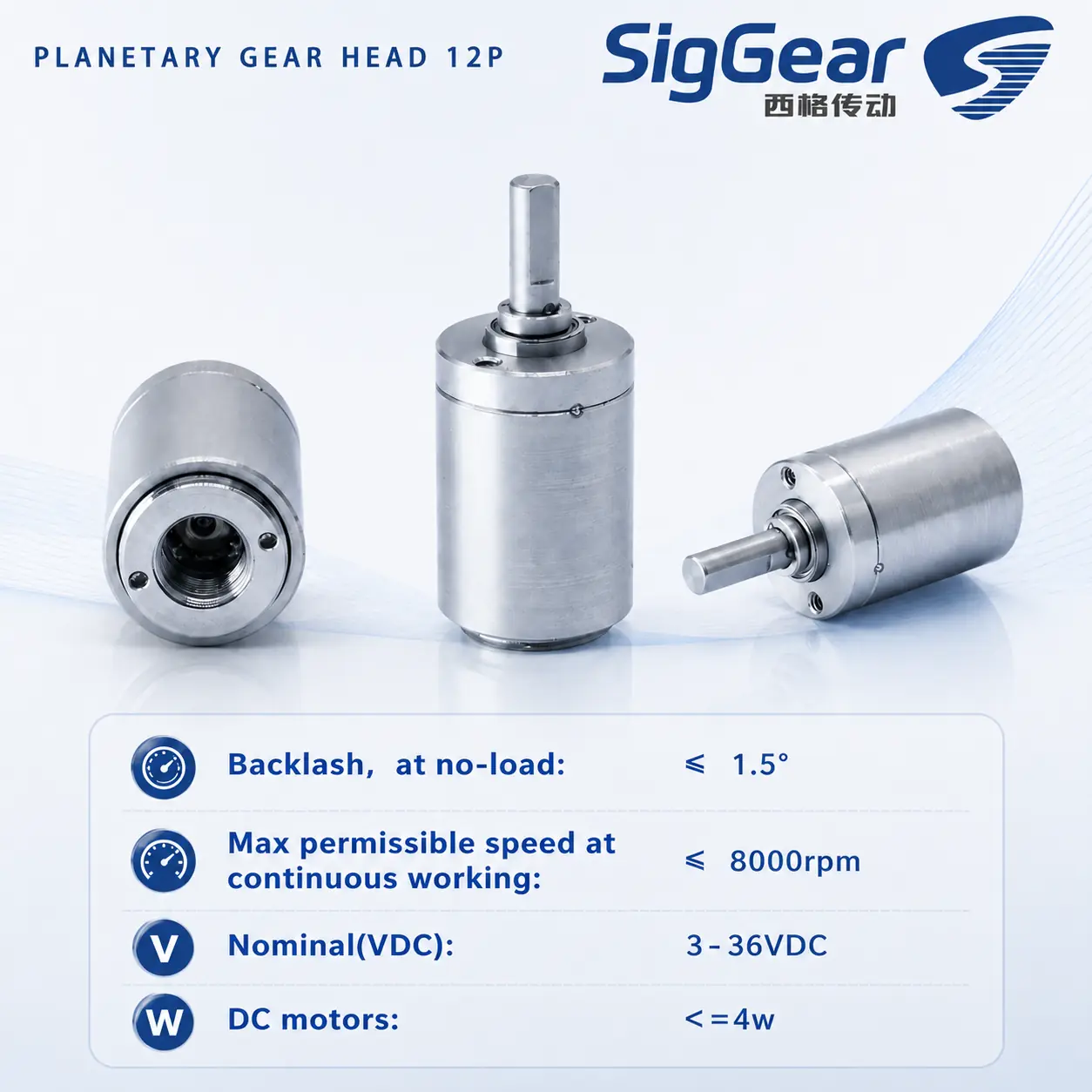

12 mm Micro Precision Planetary Gearhead (12P)¶
Download Datasheet PDF Download 2D Drawing PDF Download Full Assembly STEP Download Simplified 4-Stage STEP · Reference
Engineering data reference: Use the current 12P Datasheet PDF for published input-speed conditions, ratio/stage, rated load and dimensions. Images here show real products only; if a web summary and the downloadable Datasheet differ, verify the latest controlled revision with SigGear engineering.
| Ø Diameter | Reduction ratios | Gearhead body length | Rated allowable torque | Backlash |
|---|---|---|---|---|
| 12 mm | 3.5:1–509.1:1 | 11.35–19.60 mm | 196.1–411.9 mN·m | ≤ 1.5° |
Custom 12P interface or motor fit? Match my motor · Review my drawing / STEP · Replace / redesign existing gearbox · Prototype → volume
More: Stage-by-stage ratios · Online technical specifications · Official 2D Drawing PDF · Motor-only datasheets · All 12 models

Product Identity¶
| Item | Description |
|---|---|
| Model | 12P |
| Product type | Micro precision planetary gearhead (planetary gearbox) |
| Nominal outer diameter | 12 mm |
| Number of stages | 1 to 4 |
| Housing material | Steel |
| Gearwheel material | Steel |
| Output bearing | Ball Bearing |
Key Specifications¶
| Parameter | Published value |
|---|---|
| Nominal outer diameter | 12 mm |
| Gearhead length range | 11.35–19.60 mm |
| Reduction ratio range | 3.5:1–509.1:1 |
| Rated allowable torque range | 196.1–411.9 mN·m |
| Maximum momentary torque range | 392.3–823.8 mN·m |
| Efficiency range | 66–90% |
| Backlash at no load | ≤ 1.5° |
| Permissible gearhead input speed, continuous operation | 1,000–50,000 rpm |
| Operating temperature | −40 to 120 °C |
Maximum momentary torque is not a continuous working rating.

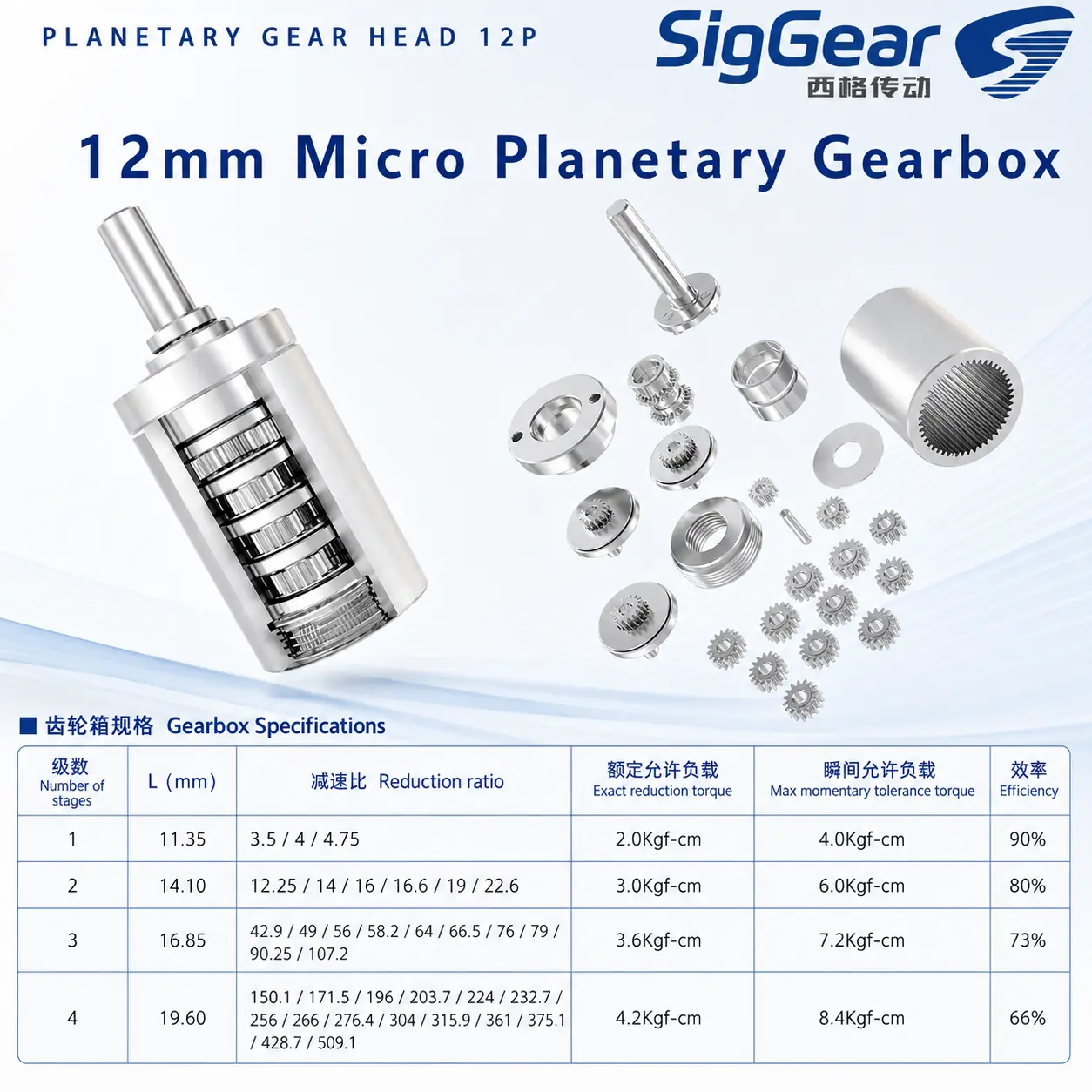

Stage, Ratio and Performance Table¶
| Stages | Gearhead length L | Available reduction ratios | Rated allowable torque | Maximum momentary torque | Efficiency |
|---|---|---|---|---|---|
| 1 | 11.35 mm | 3.5 / 4 / 4.75 | 196.1 mN·m | 392.3 mN·m | 90% |
| 2 | 14.10 mm | 12.25 / 14 / 16 / 16.6 / 19 / 22.6 | 294.2 mN·m | 588.4 mN·m | 80% |
| 3 | 16.85 mm | 42.9 / 49 / 56 / 58.2 / 64 / 66.5 / 76 / 79 / 90.25 / 107.2 | 353.0 mN·m | 706.1 mN·m | 73% |
| 4 | 19.60 mm | 150.1 / 171.5 / 196 / 203.7 / 224 / 232.7 / 256 / 266 / 276.4 / 304 / 315.9 / 361 / 375.1 / 428.7 / 509.1 | 411.9 mN·m | 823.8 mN·m | 66% |

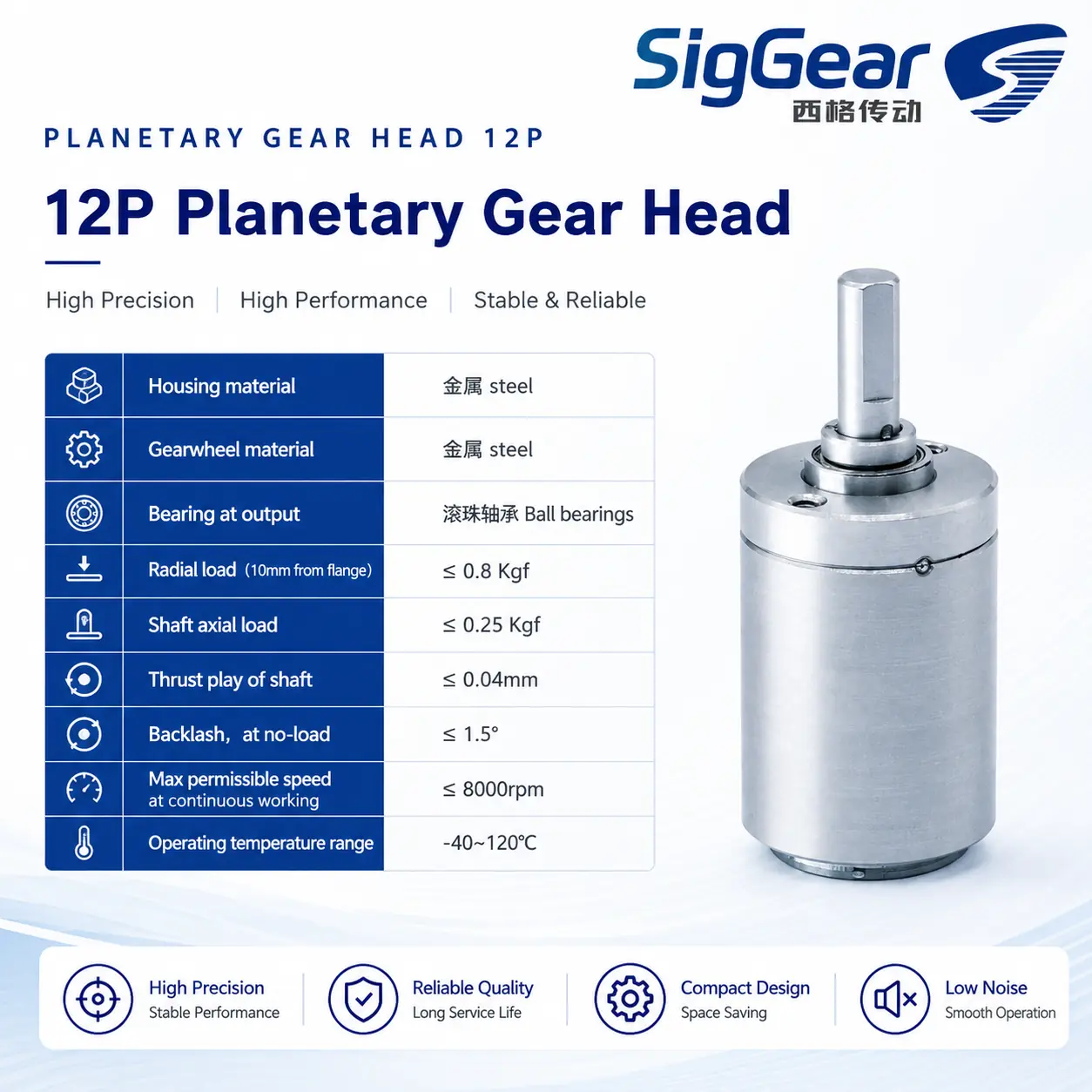

Shaft and Load Limits¶
| Parameter | Published value |
|---|---|
| Radial load, measured 10 mm from flange | ≤ 0.8 kgf |
| Shaft axial load | ≤ 0.25 kgf |
| Thrust shaft play | ≤ 0.04 mm |
The supplied 12P mechanical-detail sheet does not state a radial shaft-play value, so none is inferred from another frame size.

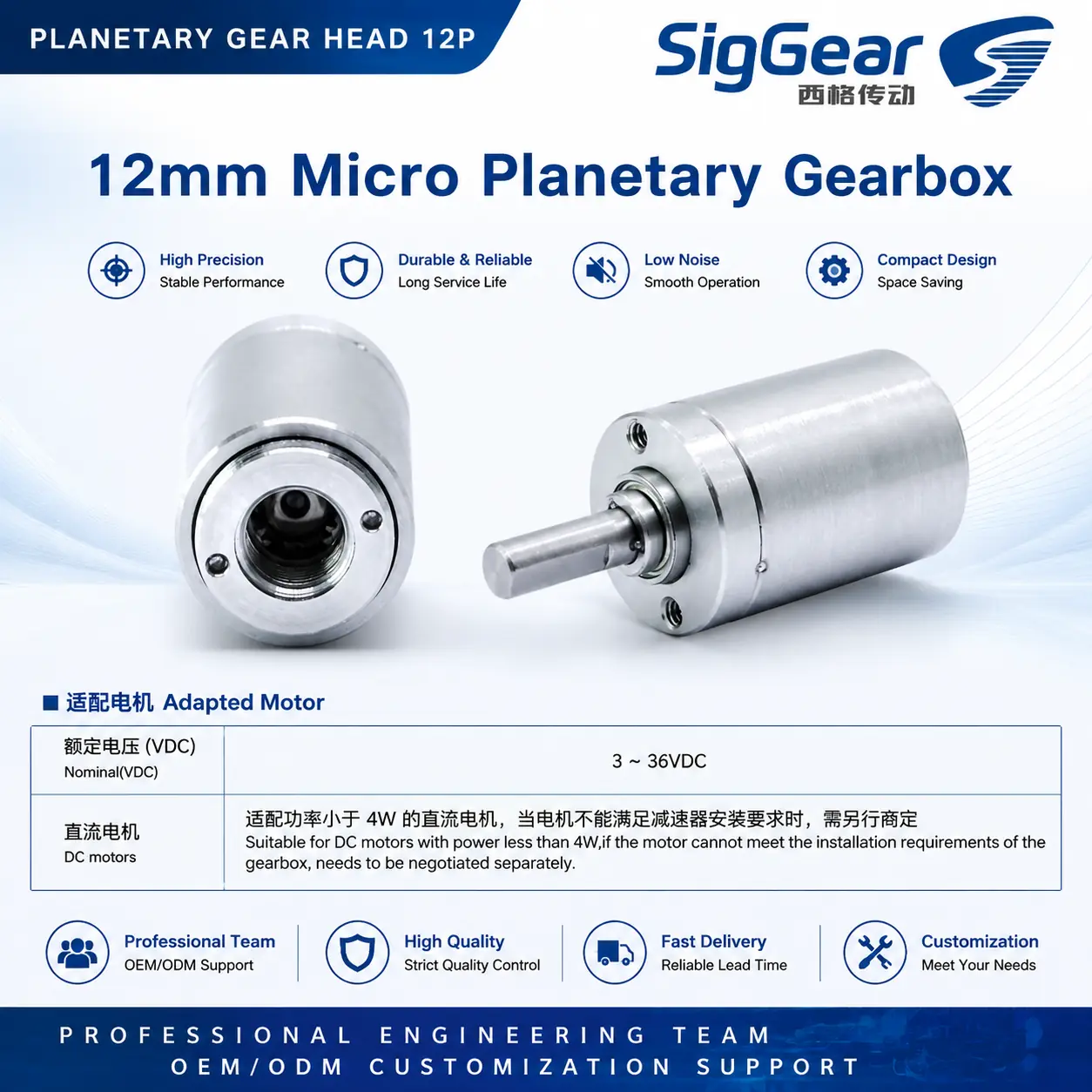

Motor Compatibility¶
For motor + gearhead matching, use the downloadable gearhead Datasheet and the motor Datasheet library. Motor voltage/power, shaft/pinion, pilot, mounting, input speed and duty-cycle compatibility must be confirmed for the exact combination; older marketing charts are not a technical specification.

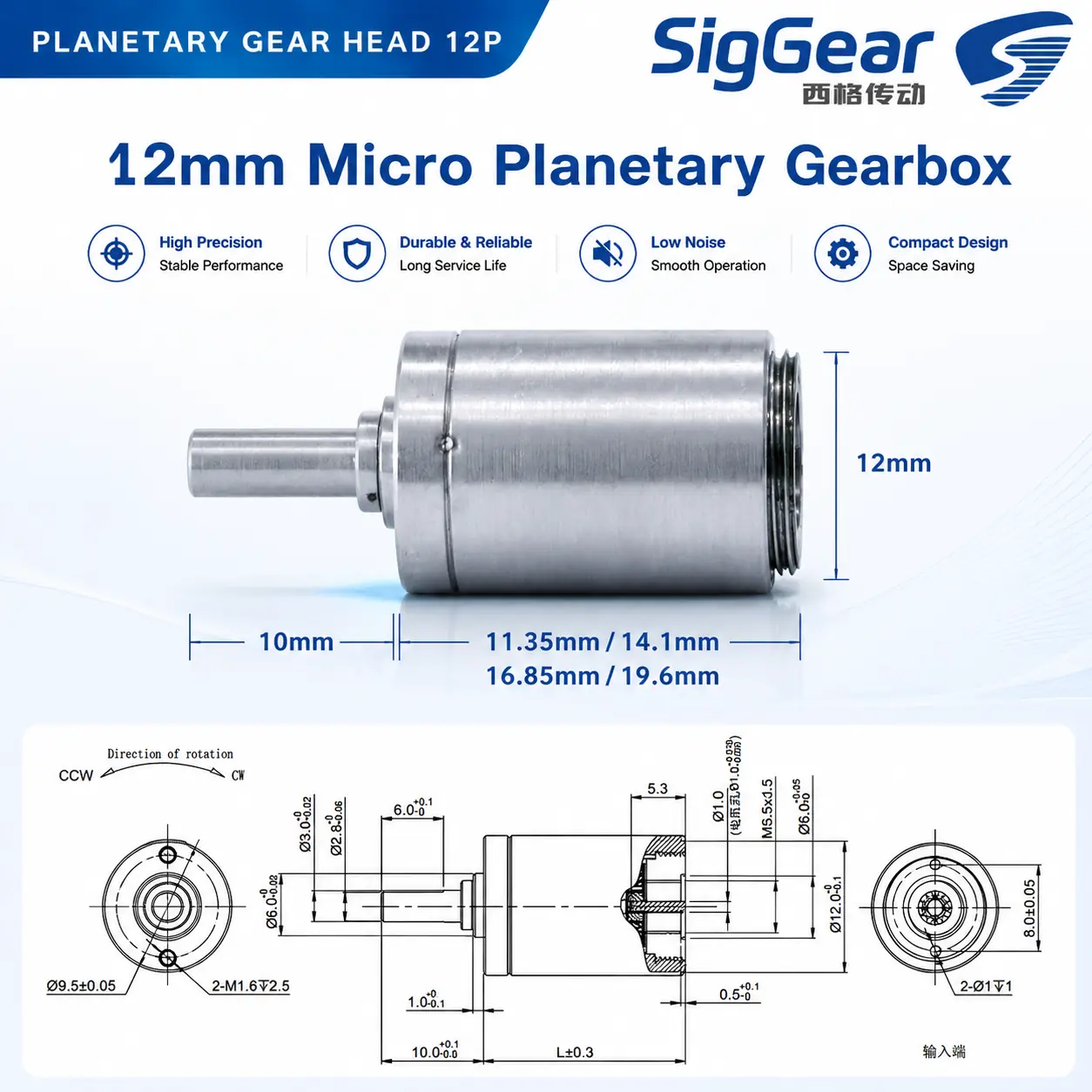

Dimensions and Interface¶
The published drawing shows a 12 mm body, a 10.00 mm output-shaft extension and stage-dependent gearhead lengths of 11.35, 14.10, 16.85 and 19.60 mm. Download the official 2D Drawing PDF above for the complete shaft, mounting, input-interface and tolerance notation.
STEP Notes¶
The Full Assembly STEP is the original Creo assembly export for 12P, now available for direct download. The separate Simplified STEP is a 4-stage reference model for preliminary packaging. For dimensional verification, use the downloadable 2D Drawing PDF and confirm its controlled production revision.
